Luminar 7030 Free Space AOTF-NIR Spectrometer
IN-LINE / AT-LINE
The Brimrose Luminar 7030 AOTF-NIR Free Space Spectrometer is designed for in-line measurement in a production facility. The spectrometer has two enclosures. One enclosure contains the optics and is placed at the location of the product being analyzed. The 2nd enclosure contains the electronics and is connected with a 1-meter cable. The small enclosures allow for in-line mounting of the spectrometer in small spaces where the Luminar 4030 model might not fit well. The performance is the same.
The design and implementation is indicative of the innovative thinking of Brimrose engineers when tasked to provide flexibility for multiple customer scenarios and challenges.
In addition to the original design, Brimrose has continuously used the 7030 platform to innovate solutions for companies that need the flexibility of a hand-held unit like the 5030 but also need more robust enclosures and cooling systems.
REQUEST INFORMATION
TECHNICAL SPECIFICATION
| Spectral Range Options | 850-1700 nm, 900-1800 nm, 1100-2300 nm (standard) |
| Measurement Modes | Diffuse Reflection |
| Spectral Resolution | 2-10 nm |
| Wavelength Accuracy | ± 0.5 nm |
| Wavelength Repeatability | ± 0.01 |
| Wavelength Increment | Software Selectable 1-10 nm |
| Ambient Light Rejection | > 106 |
| Vibration Immunity | Blenders, production machinery, conveyor belts |
| S/N at 70% Range | < 30μabs in reflectance and transmission, for<5 seconds integration time |
| Wavelength Access Time | < 66 μsec |
| Photometric Range | 3.5 AU |
| Linearity | Better than 0.15% |
| Signal Digitalization | 16-bit A/D (1 part in 65,536) |
| Sampling Speed | 16,000 wavelength/sec |
| Sampling Area | Ø6 mm |
| Sampling Distance | 55 mm |
| Diagnostic | 10 Built-in monitoring sensors |
| Power Requirements | 12VDC, (24VDC special order), 90Watts, 110VAC 60Hz, 220VAC 50Hz |
| Cooling Options | Fan-cooled, Vortex-cooled |
| Communication | Wireless, OPC UA, Modbus (Serial or TCP), I/O with 4-20mA, TCP/IP Ethernet |
| Enclosure (W x H x D) | Optical Module: 150 mm x 191.50 mm x 88 mm Electronics: 335 mm x 342 mm x 162.50 mm |
VIDEO DEMOS
ACCESSORIES
Brimrose designs and builds custom mounting assemblies for easy installation of the Luminar 7030 Free Space AOTF-NIR Spectrometer in our customers’ manufacturing and lab facilities.
Mounting Options

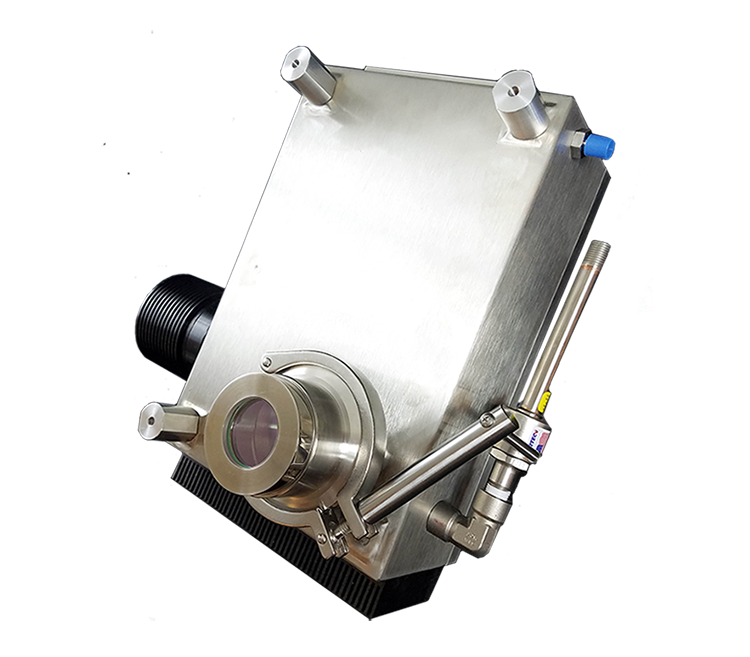

Tri-clamp Mount
Standard or Custom-Built Mounting Plates
Lab Stand with Rotating Sample Cup
Analog Lab Stand
